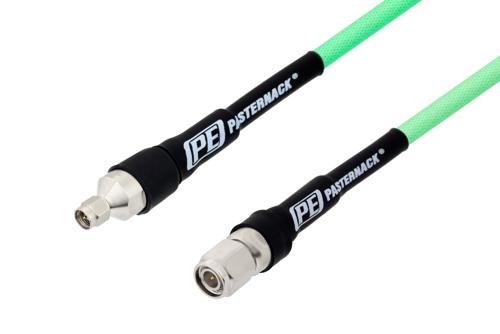

Radio frequency assembly SMA male to TNC male low loss cable using PE-P300LL coax, LF solder from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The SMA male to TNC male low loss cable using PE-P300LL coax, LF solder, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to TNC cable assembly orders will ship the same business day as well.
Pasternack RF coax low loss cable assembly is built with a SMA cable connection on one end and a TNC cable connection on the other. Our low loss SMA to TNC cable assembly has a male gender on end 1 and a male on end 2. PE338LF can also be known as a low loss SMA plug to TNC plug cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper as the cable's inner conducting material and PTFE dielectric type.
This cable assembly employs durable and flexible materials, and with a 1.5-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE338LF RF cable has a FEP jacket of 0.300-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -55 to 165 degrees C. The flexible RF cable has a between series connection. Our SMA male to TNC male cable has a maximum VSWR of 1.4:1.
SMA plug to TNC plug cable assembly PE338LF is built with PE-P300LL which is a flexible coax type. The Pasternack flexible SMA cable assembly is manufactured with SMA to TNC cable connectors, has a 50 Ohm impedance, and is triple shielded. Both the connectors have a clamp/solder attachment method and a passivated stainless steel body. Additional dimensions, specifications and CAD drawings for this low loss RF cable are available on our downloadable PDF datasheet. PE338LF can also be used in the other direction and will be a TNC male to SMA male cable assembly if the opposite connectivity is required.
Low loss SMA plug to TNC plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to TNC cable assembly for quick shipment worldwide. Variations of SMA and TNC cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, low loss, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to TNC low loss RF cable assembly as per your requirements.
