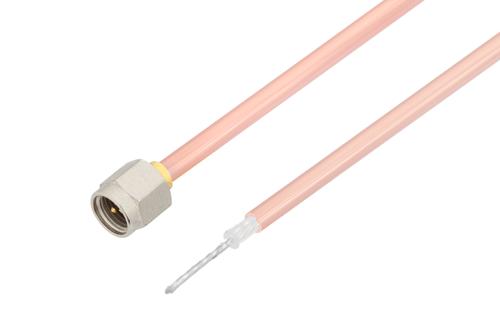

Radio frequency assembly SMA male to trimmed lead cable using RG402 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SMA male to trimmed lead cable using RG402 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMA to trimmed lead cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a SMA cable connection on one end and a trimmed lead cable connection on the other. Our SMA to trimmed lead cable assembly has a male gender on end 1 and a sexless on end 2. PE3C3559 can also be known as a SMA plug to trimmed lead sexless cable assembly and will be shipped the same day as it is purchased. This semi-rigid RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
The minimum bend radius for this cable is 0.25 inches, allowing for a single bend without damaging the cable. The semi-rigid RF cable has a between series connection.
SMA plug to trimmed lead sexless cable assembly PE3C3559 is built with RG402 which is a semi-rigid coax type. The Pasternack semi-rigid SMA cable assembly is manufactured with SMA to trimmed lead cable connectors, has a 50 Ohm impedance. One connector features the solder/solder attachment method and a stainless steel body with gold plating, while the other has the crimp/solder attachment method. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3C3559 can also be used in the other direction and will be a trimmed lead sexless to SMA male cable assembly if the opposite connectivity is required.
SMA plug to trimmed lead sexless cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMA to trimmed lead cable assembly for quick shipment worldwide. Variations of SMA and trimmed lead cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to Trimmed Lead RF cable assembly as per your requirements.
