SMA Male Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch

Product ID: PE45461
SMA Male Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch

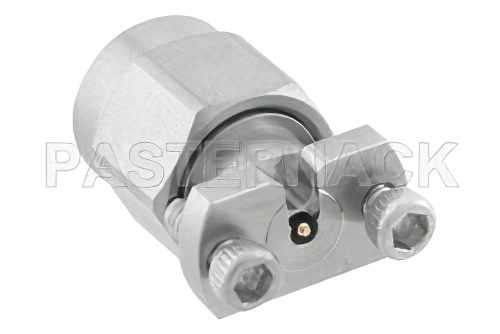

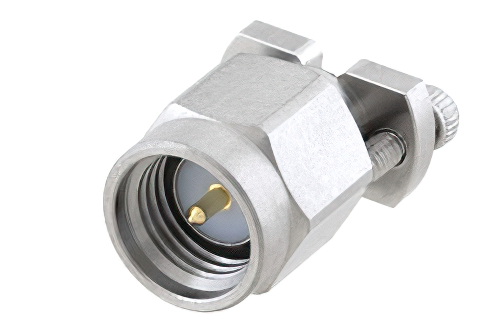

Image Views:  SMA Male Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch high resolution
Zoomalternate image
View 2


Click for:PE45461 Datasheet
Click for:PE45461 RoHS Cert
Click for:PE45461 REACH Cert
Available Quantity: 17
Pricing Table
QUANTITYPRICE
1-24$37.61
25-49$36.11
50-99$34.98
100-249$34.23
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSMA
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency26.5 GHz


SMA Male Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch

PE45461 SMA male pcb connector has an interface type of vertical launch and a 50 Ohm impedance. Pasternack SMA male connector uses shield/contact clamp as an attachment method. Our male SMA pcb connector provides a minimum frequency of DC and a maximum frequency of 26.5 GHz.

The Pasternack SMA male pcb connector has a ptfe dielectric type and a VSWR of 1.3. The Pasternack SMA pcb connector has a passivated stainless steel body. Our PE45461 SMA connector uses brass contact. This SMA male pcb RF connector is RoHS and REACH compliant.

This Pasternack male SMA connector will ship the same day as purchased. Our SMA male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMA connector cable assemblies that will ship the same day as well.
