Medium Power SP6T Electromechanical Relay Switches

Check out our new RF calculators & conversion tools...

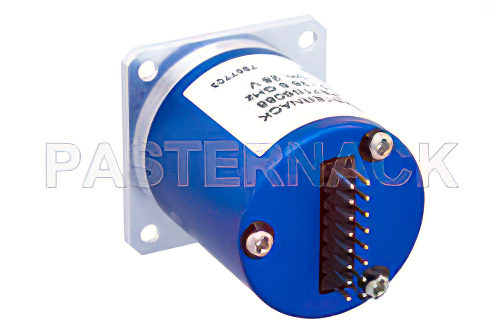

SP6T Electromechanical Relay Normally Open Switch, DC to 26.5 GHz, up to 250W, 28V TTL, SMA

Product ID: PE71S6088
SP6T Electromechanical Relay Normally Open Switch, DC to 26.5 GHz, up to 250W, 28V TTL, SMA


Image Views:  SP6T Electromechanical Relay Normally Open Switch, DC to 26.5 GHz, up to 250W, 28V TTL, SMA high resolution
Zoomalternate image
View 2


Click for:PE71S6088 Datasheet
Available Quantity: 6
Pricing Table
QUANTITYPRICE
1-1$2,314.84
2-4$2,222.25
5-9$2,129.65
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector SeriesSMA
Connector GenderFemale
Switch DesignSP6T
Minimum FrequencyDC
Maximum Frequency26.5 GHz
Impedance50 Ohm
Maximum Input Power (CW)40 Watts
Maximum VSWR1.6:1
Maximum Insertion Loss0.6 dB
Minimum Isolation55 dB


SP6T Electromechanical Relay Normally Open Switch, DC to 26.5 GHz, up to 250W, 28V TTL, SMA

PE71S6088 electromechanical RF relay switch from Pasternack is a SP6T design. Our SP6T electromechanical RF switch uses SMA connectors at 50 Ohm. This SMA RF relay SP6T switch has a maximum frequency of 26.5 GHz and maximum power of 40 Watts. The Pasternack radio frequency SP6T SMA electro-mechanical relay switch is rated at a control voltage of 28 Volts, indicator voltage and switching speed of 10ms.

SMA SP6T electro mechanical RF relay switch features TTL Logic with an isolation minimum of 55 dB. SP6T electromechanical relay radio frequency switch PE71S6088 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our SP6T SMA coaxial RF relay electromechanical switch can ship worldwide the same day that it is bought as with our other available RF parts.
