Medium Power SP6T Electromechanical Relay Switches

Check out our new RF calculators & conversion tools...

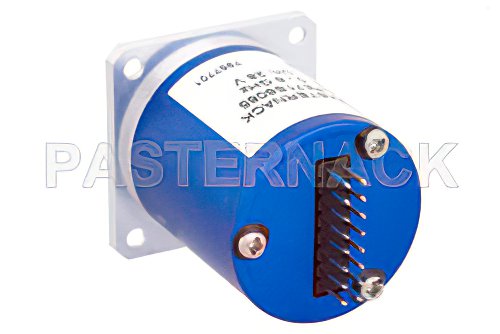

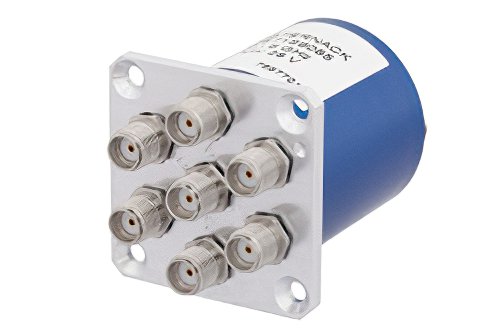

SP6T Electromechanical Relay Normally Open Switch, DC to 6 GHz, up to 80W, 28V, SMA

Product ID: PE71S6085
SP6T Electromechanical Relay Normally Open Switch, DC to 6 GHz, up to 80W, 28V, SMA


Image Views:  SP6T Electromechanical Relay Normally Open Switch, DC to 6 GHz, up to 80W, 28V, SMA high resolution
Zoomalternate image
View 2


Click for:PE71S6085 Datasheet
Click for:PE71S6085 RoHS Cert
Available Quantity: 8
Pricing Table
QUANTITYPRICE
1-1$1,358.04
2-4$1,303.72
5-9$1,249.40
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector SeriesSMA
Connector GenderFemale
Switch DesignSP6T
Minimum FrequencyDC
Maximum Frequency6 GHz
Impedance50 Ohm
Maximum Input Power80 Watts
Maximum VSWR1.3:1
Maximum Insertion Loss0.3 dB
Minimum Isolation70 dB


SP6T Electromechanical Relay Switch DC to 6 GHz, SMA, 80 Watts, 28V Control with Normally Open

PE71S6085 electromechanical RF relay switch from Pasternack is a SP6T design. Our SP6T electromechanical RF switch uses SMA connectors at 50 Ohm. This SMA RF relay SP6T switch has a maximum frequency of 6 GHz and maximum power of 80 Watts. The Pasternack radio frequency SP6T SMA electro-mechanical relay switch is rated at a control voltage of 28 Volts, indicator voltage and switching speed of .

SMA SP6T electro mechanical RF relay switch features Normally Open with an isolation minimum of 70 dB. SP6T electromechanical relay radio frequency switch PE71S6085 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our SP6T SMA coaxial RF relay electromechanical switch can ship worldwide the same day that it is bought as with our other available RF parts.
