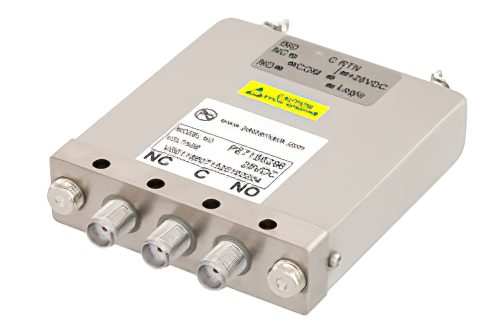

SPDT Electromechanical Relay Failsafe Switch, Terminated, DC to 22 GHz, 20W, 28V TTL, Indicators, SMA

Product ID: PE71S6296

Pricing

QuantityPrice
1-1$2,038.80
2-4$1,957.25
5-9$1,875.70
10+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 1
Shipping Truck
Same-Day Shipping!
Order in the next hours!
Product discontinued when current inventory is depleted.
Replaced with PE71S6469.
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector SeriesSMA
Connector GenderFemale
Switch DesignSPDT
Minimum FrequencyDC
Maximum Frequency22 GHz
Impedance50 Ohm
Maximum Input Power (CW)20 Watts
Maximum Insertion Loss0.6 dB

Description

SPDT Electromechanical Relay Failsafe Switch, Terminated, DC to 22 GHz, 20W, 28V TTL, Indicators, SMA

PE71S6296 electromechanical RF relay switch from Pasternack is a SPDT design. Our SPDT electromechanical RF switch uses SMA connectors at 50 Ohm. This SMA RF relay SPDT switch has a maximum frequency of 22 GHz and maximum power of 20 Watts. The Pasternack radio frequency SPDT SMA electro-mechanical relay switch is rated at a control voltage of 28 Volts, indicator voltage and switching speed of 20ms.

SMA SPDT electro mechanical RF relay switch features TTL Logic, Indicators with an isolation minimum of dB. SPDT electromechanical relay radio frequency switch PE71S6296 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our SPDT SMA coaxial RF relay electromechanical switch can ship worldwide the same day that it is bought as with our other available RF parts.
