SMB to BNC Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

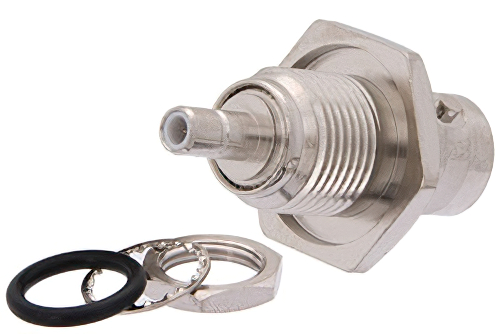

Bulkhead Mount SMB Jack to BNC Female Adapter

Product ID: PE9240
Bulkhead Mount SMB Jack to BNC Female Adapter

Image Views:  Bulkhead Mount SMB Jack to BNC Female Adapter high resolution
Zoom


Click for:PE9240 Datasheet
Available Quantity: 623
Pricing Table
QUANTITYPRICE
1-24$53.02
25-49$50.37
50-99$47.72
100-249$45.60
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Jack
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max4 GHz
Adapter Body StyleStraight
Connector Mount Method 1Bulkhead
Connector Mount Method 2None


Bulkhead Mount SMB Jack to BNC Female Adapter

SMB adapter PE9240 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMB to BNC adapter is a between series coaxial adapter design. This 50 Ohm SMB adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 4 GHz.

SMB jack to BNC female adapter is one of the many RF components that ship same day as they are ordered. PE9240 jack SMB to female BNC adapter has a straight body. This Pasternack straight SMB coax adapter is a in-line RF adapter.

Our jack SMB to female BNC adapter PE9240 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMB to BNC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
