SMB 75 Ohm to BNC Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

75 Ohm SMB Jack to 50 Ohm BNC Male Adapter

Product ID: PE9229

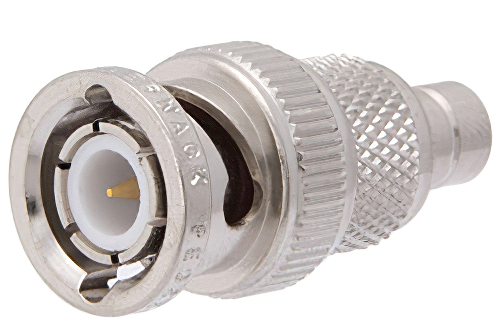

75 Ohm SMB Jack to 50 Ohm BNC Male Adapter

Image Views:  75 Ohm SMB Jack to 50 Ohm BNC Male Adapter high resolution
Zoom


Click for:PE9229 Datasheet
Click for:PE9229 RoHS Cert
Click for:PE9229 REACH Cert
Available Quantity: 2,932
Pricing Table
QUANTITYPRICE
1-24$55.10
25-49$51.24
50-99$47.39
100-249$44.08
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Jack
Connector Polarity 1Standard
Connector Impedance 175 Ohm
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


75 Ohm SMB Jack to 50 Ohm BNC Male Adapter

SMB adapter PE9229 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMB to BNC adapter is a between series coaxial adapter design. This 75 Ohm to 50 Ohm SMB adapter is precision manufactured to RF components industry specifications.

SMB jack to BNC male adapter is one of the many RF components that ship same day as they are ordered. PE9229 jack SMB to male BNC adapter has a straight body. This Pasternack straight SMB coax adapter is a in-line RF adapter.

Our jack SMB to male BNC adapter PE9229 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMB to BNC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
