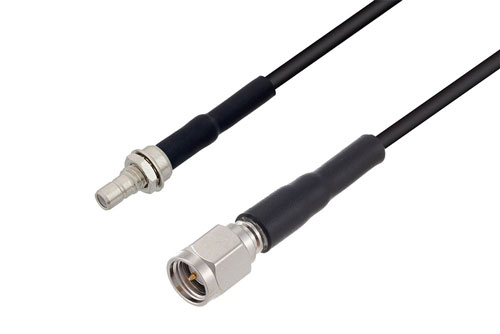

SMB Jack Bulkhead to SMA Male Low Loss Cable 100 CM Length Using LMR-100 Coax with HeatShrink

Product ID: PE3W02410/HS-100CM

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Pricing

Quantity	Price
1-24	$98.99
25-49	$94.04
50-99	$89.09
100-249	$85.13
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Call for Availability

Same-Day Shipping!

Order in the next hours!

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications.
Connector 1 Series	SMB
Connector 1 Gender	Jack
Connector 1 Polarity	Standard
Connector Angle 1	Straight
Connector Mount Method 1	Bulkhead
Connector 1 Impedance	50 Ohm
Connector 2 Series	SMA
Connector 2 Gender	Male
Connector 2 Polarity	Standard
Connector Angle 2	Straight
Connector 2 Impedance	50 Ohm
Connector 1 Body Material	Brass
Connector 1 Body Plating	Nickel
RF Cable Part Number	LMR-100A-PVC
RF Cable Type	LMR-100A
RF Cable Impedance	50 Ohm
Length, Max	39.37 inches

Description

SMB Jack Bulkhead to SMA Male Low Loss Cable 100 Cm Length Using LMR-100 Coax with HeatShrink

Radio frequency assembly SMB jack bulkhead to SMA male low loss cable 100 cm length using LMR-100 coax with heatshrink from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The SMB jack bulkhead to SMA male low loss cable 100 cm length using LMR-100 coax with heatshrink, SMB cable like our other Pasternack coaxial cable assemblies, will ship the same day and any custom SMB to SMA cable assembly orders will ship same day as well.

Pasternack RF coax low loss cable assembly is built with SMB bulkhead cable connection on one end and SMA cable connection on the other. Our low loss SMB to SMA cable assemblies have a jack gender on end 1 and male on end 2. PE3W02410/HS-100CM can also be known as a low loss SMB female to SMA plug cable assembly and will be shipped same-day as it is purchased.

SMB female to SMA plug cable assembly PE3W02410/HS-100CM is built with LMR-100A which is a flexible coax type. The Pasternack flexible SMB cable assembly is manufactured with SMB to SMA cable connectors, has a 50 Ohm impedance and is double shielded. RF specs on this 4 GHz maximum frequency SMB jack bulkhead to SMA male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE3W02410/HS-100CM can also be used in the other direction and will be SMA male to SMB jack bulkhead cable assembly if the opposite connectivity is required.

Low loss SMB female bulkhead to SMA plug cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality SMB to SMA cable assembly for quick shipment worldwide. Variations of SMB cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, low loss, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this SMB jack bulkhead to SMA male low loss cable 100 cm length using LMR-100 coax with heatshrink.
