SMB Tee Adapter Jack-Jack-Jack

Product ID: PE9302

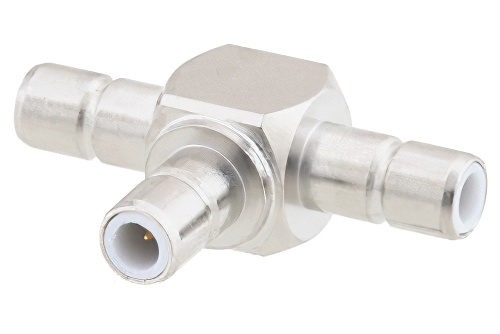

SMB Tee Adapter Jack-Jack-Jack


Image Views:  SMB Tee Adapter Jack-Jack-Jack high resolution
Zoomalternate image
View 2


Click for:PE9302 Datasheet
Click for:PE9302 RoHS Cert
Click for:PE9302 REACH Cert
Available Quantity: 1,011
Pricing Table
QUANTITYPRICE
1-24$48.25
25-49$45.84
50-99$43.43
100-249$41.50
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Jack
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2SMB
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Connector Series 3SMB
Connector Gender 3Jack
Adapter Body StyleTee
Connector Mount Method 1None
Connector Mount Method 2None


SMB Tee Adapter Jack-Jack-Jack

SMB adapter PE9302 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMB to SMB adapter is a in-series coaxial adapter design. This 50 Ohm SMB adapter is precision manufactured to RF components industry specifications.

SMB jack to SMB jack adapter is one of the many RF components that ship same day as they are ordered. PE9302 jack SMB to jack SMB adapter has a tee body. This Pasternack tee SMB adapter is also known as a SMB T connector.

Our jack SMB to jack SMB adapter PE9302 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMB to SMB radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
