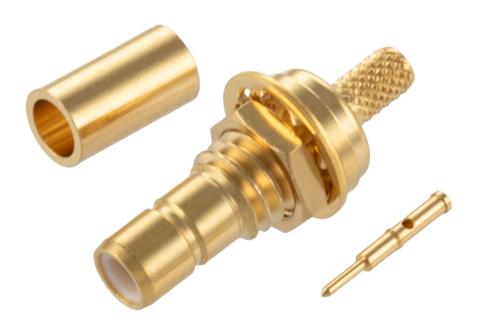

PE517806 SMB jack coaxial non-magnetic connector has an interface type of SMB jack, which is compatible with RG316, LMR®-100A, PE-B100, PE-C100, RG174, RG174MN, RG188, PE-C100-LSZH, LMR®-100-FR and LMR®-100A-PVC cables, and has an impedance of 50 Ohms. This connector is part of our non-magnetic RF interconnects that are designed for carrying RF signals within a magnetic field. As such, they have a low level of magnetic susceptibility and no field distortion. Pasternack’s SMB jack connector uses crimp/solder as an attachment method. Our jack SMB coaxial connector provides a maximum frequency of 4 GHz. This SMB jack non-magnetic RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack SMB jack coaxial connector has a PTFE dielectric type and a VSWR of 1.2:1. This non-magnetic connector is suitable for use in MRI and other medical imaging equipment, patient monitoring devices, medical technology, and other non-magnetic RF applications. Pasternack’s SMB coaxial connector has a phosphor bronze body with gold over nickel over copper plating. Our PE517806 SMB connector uses a gold over nickel over copper-plated phosphor bronze contact. The Pasternack non-magnetic RF connector has a maximum inner and outer conductor resistance of 5 mOhms and 2.5 mOhms respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from phosphor bronze material has a contact life of 500 cycles or more. The PE517806 SMB non-magnetic connector operates at a temperature range of -65 to 165 deg C. Our jack SMB coaxial RF connector has a maximum insertion loss of 0.2 dB. This SMB connector has a gold over nickel over copper inner contact plating. The Pasternack non-magneticSMB jack connector has a maximum operating voltage of 335 Vrms and a dielectric withstanding voltage of 1,000 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 10,000 MOhms. Our SMB jack connector has a length of 0.689 inches, a width of 0.307 inches, and a weight of 0.05 lbs.
This Pasternack non-magnetic jack SMB connector will ship the same business day as purchased. Our SMB jack coaxial connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
LMR® is a registered trademark of Times Microwave Systems.
