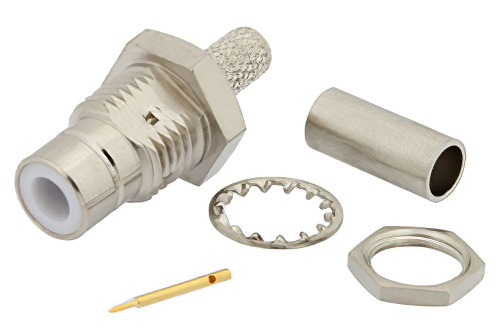

75 Ohm SMB Jack Bulkhead Connector Crimp/Solder Attachment For RG180, RG195, .285 inch D Hole
Product ID:
PE4165
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Polarity | Standard |
| Connector Series | SMB |
| Connector Gender | Jack |
| Impedance | 75 Ohm |
| Body Style | Straight |
| Attachment Method | Crimp/Solder |
| Mount Method | Bulkhead |
| Interface Type 1 | RG180 |
| Interface Type 2 | RG195 |
Description
75 Ohm SMB Jack Bulkhead Connector Crimp/Solder Attachment For RG180, RG195, .285 inch D Hole
PE4165 SMB jack bulkhead coaxial connector has an interface type of RG180, RG195 and a 75 Ohm impedance. Pasternack SMB jack bulkhead connector uses shield/contact crimp/solder as an attachment method.
The Pasternack SMB jack bulkhead coaxial connector has a PTFE dielectric type. The Pasternack SMB coaxial connector has a brass body with nickel plating. This SMB jack bulkhead coaxial RF connector is RoHS and REACH compliant.
This Pasternack jack SMB bulkhead connector will ship the same day as purchased. Our bulkhead SMB jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMB connector cable assemblies that will ship the same day as well.
