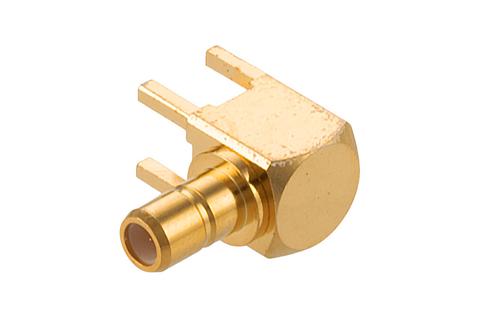

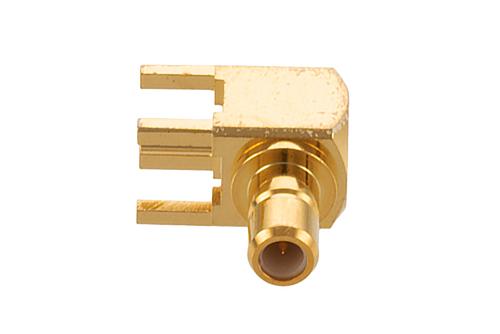

PE4177 SMB jack right angle PCB connector has an interface type of SMB jack which is compatible with thru hole cables and has an impedance of 50 Ohms. Pasternack’s SMB jack connector uses solder as an attachment method. Our jack SMB right angle PCB connector provides a maximum frequency of 4 GHz. Our high-quality radio frequency co-axial connector is used for general purpose test and printed circuit board applications. This SMB jack RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack right angle SMB jack PCB connector has a PTFE dielectric type and a VSWR of 1.22:1. Pasternack’s SMB PCB connector has a brass body with gold plating. Our PE4177 SMB right angle connector uses a gold-plated brass contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 6 mOhms and 1 mOhm respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE4177 features a 3 µin minimum body plating specification. The PE4177 SMB connector operates at a temperature range of -65 to 165 deg C. This right angle SMB connector has a gold inner contact plating. This PCB RF connector comes with a minimum insulation resistance of 1,000 MOhms. Our right angle SMB jack connector has a length of 0.45 inches, a width of 0.25 inches, and a weight of 0.007 lbs.
This Pasternack right angle jack SMB connector will ship the same business day as purchased. Our SMB right angle jack connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
