SMB Plug Straight Connectors

Check out our new RF calculators & conversion tools...

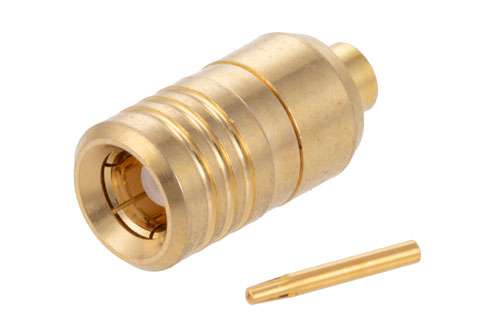

SMB Plug Push-On Connector Solder Attachment for RG405, PE-SR405FL, PE-SR405FLJ

Product ID: PE45119
SMB Plug Push-On Connector Solder Attachment for RG405, PE-SR405FL, PE-SR405FLJ


Image Views:  SMB Plug Push-On Connector Solder Attachment for RG405, PE-SR405FL, PE-SR405FLJ high resolution
Zoomalternate image

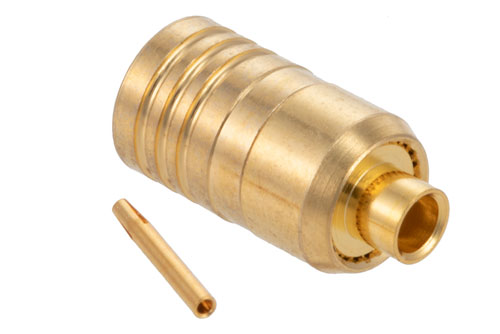

View 2


Click for:PE45119 Datasheet
Click for:PE45119 RoHS Cert
Click for:PE45119 REACH Cert
Available Quantity: 800
Pricing Table
QUANTITYPRICE
1-24$8.32
25-49$7.90
50-99$7.49
100-249$7.16
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSMB
Connector GenderPlug
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency4 GHz


SMB Plug Push-On Connector Solder Attachment for RG405, PE-SR405FL, PE-SR405FLJ

PE45119 SMB plug coaxial push-on connector has an interface type of RG405, PE-SR405FL, PE-SR405FLJ and a 50 Ohm impedance. Pasternack SMB plug connector uses shield/contact solder/solder as an attachment method. Our plug SMB coaxial connector provides a minimum frequency of DC and a maximum frequency of 4 GHz.

The Pasternack SMB plug coaxial push-on connector has a teflon dielectric type and a VSWR of 1.3. The Pasternack SMB coaxial connector has a brass body with gold plating. Our PE45119 SMB connector uses beryllium copper contact. This SMB plug coaxial push-on RF connector is RoHS and REACH compliant.

This Pasternack plug SMB connector will ship the same day as purchased. Our SMB plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMB connector cable assemblies that will ship the same day as well.
