SMB Plug to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

SMB Plug to BNC Male Cable Using PE-B100 Coax

Product ID: PE37536
SMB Plug to BNC Male Cable Using PE-B100 Coax

Image Views:  SMB Plug to BNC Male Cable Using PE-B100 Coax high resolution
Zoom


Click for:PE37536 Datasheet
Click for:PE37536 RoHS Cert
DISCONTINUED PRODUCT
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-B100
RF Cable TypePE-B100
RF Cable Impedance50

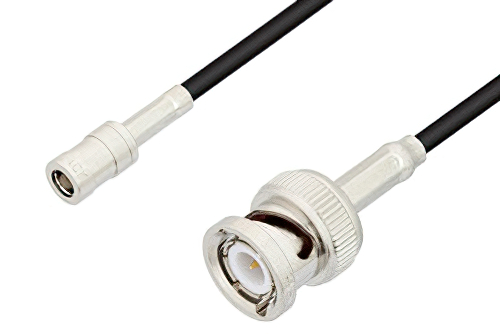

SMB Plug to BNC Male Cable Using PE-B100 Coax

PE37536 is a SMB plug to BNC male cable using PE-B100 coax. This Pasternack SMB plug to BNC male cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm BNC for connector 2.

Our plug SMB to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE37536 SMB plug to BNC male cable assembly is constructed with PE-B100 coax and the maximum VSWR is 1.4:1.
