SMB Plug to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

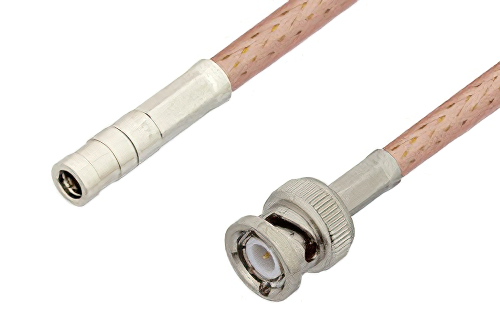

SMB Plug to BNC Male Cable 24 Inch Length Using PE-P195 Coax

Product ID: PE37250-24
SMB Plug to BNC Male Cable 24 Inch Length Using PE-P195 Coax

Image Views:  SMB Plug to BNC Male Cable 24 Inch Length Using PE-P195 Coax high resolution
Zoom


Click for:PE37250-24 Datasheet
Available Quantity: 2,262
Standard Lengths
12 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Pricing Table
QUANTITYPRICE
1-24$60.30
25-49$57.29
50-99$54.27
100-249$51.86
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-P195
RF Cable TypePE-P195
RF Cable Impedance50


SMB Plug to BNC Male Cable 24 Inch Length Using PE-P195 Coax

PE37250-24 is a SMB plug to BNC male cable using PE-P195 coax. This Pasternack SMB plug to BNC male cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm BNC for connector 2.

Our plug SMB to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE37250-24 SMB plug to BNC male cable assembly is constructed with PE-P195 coax.
