SMB Plug to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

SMB Plug to BNC Male Cable Using RG188 Coax, LF Solder, RoHS

Product ID: PE3C3428LF
SMB Plug to BNC Male Cable Using RG188 Coax, LF Solder, RoHS

Image Views:  SMB Plug to BNC Male Cable Using RG188 Coax, LF Solder, RoHS high resolution
Zoom


Click for:PE3C3428LF Datasheet
Click for:PE3C3428LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG188A/U
RF Cable TypeRG188
RF Cable Impedance50 Ohm


SMB Plug to BNC Male Cable Using RG188 Coax, LF Solder, RoHS

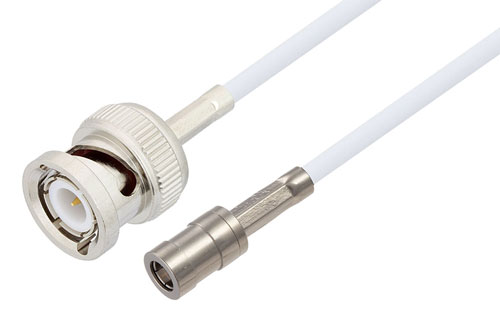

PE3C3428LF is a SMB plug to BNC male cable using RG188 coax. This Pasternack SMB plug to BNC male cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm BNC for connector 2.

Our plug SMB to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C3428LF SMB plug to BNC male cable assembly is constructed with RG188 coax and the maximum VSWR is 1.4:1.
