SMB Plug to BNC Male Cable Using RG316 Coax, RoHS

Product ID: PE3746LF
SMB Plug to BNC Male Cable Using RG316 Coax, RoHS

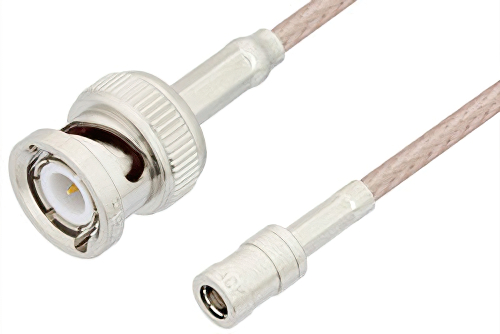

Image Views:  SMB Plug to BNC Male Cable Using RG316 Coax, RoHS high resolution
Zoom


Click for:PE3746LF Datasheet
DISCONTINUED PRODUCT
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50


SMB Plug to BNC Male Cable Using RG316 Coax, RoHS

PE3746LF is a SMB plug to BNC male cable using RG316 coax. This Pasternack SMB plug to BNC male cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm BNC for connector 2.

Our plug SMB to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3746LF SMB plug to BNC male cable assembly is constructed with RG316 coax and the maximum VSWR is 1.4:1.
