SMB 75 Ohm to BNC Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

50 Ohm BNC Male to 75 Ohm SMB Plug Adapter

Product ID: PE9230

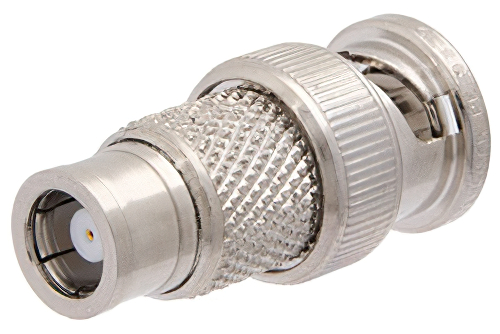

50 Ohm BNC Male to 75 Ohm SMB Plug Adapter

Image Views:  50 Ohm BNC Male to 75 Ohm SMB Plug Adapter high resolution
Zoom


Click for:PE9230 Datasheet
Click for:PE9230 RoHS Cert
Click for:PE9230 REACH Cert
Available Quantity: 59
Pricing Table
QUANTITYPRICE
1-24$58.16
25-49$54.09
50-99$50.02
100-249$46.53
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1BNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2SMB
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Impedance 275 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


50 Ohm BNC Male to 75 Ohm SMB Plug Adapter

BNC adapter PE9230 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our BNC to SMB adapter is a between series coaxial adapter design. This 50 Ohm to 75 Ohm BNC adapter is precision manufactured to RF components industry specifications.

BNC male to SMB plug adapter is one of the many RF components that ship same day as they are ordered. PE9230 male BNC to plug SMB adapter has a straight body. This Pasternack straight BNC coax adapter is a in-line RF adapter.

Our male BNC to plug SMB adapter PE9230 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This BNC to SMB radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
