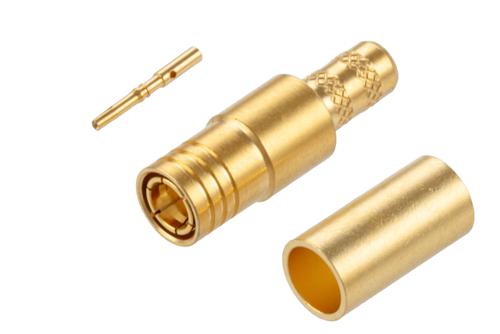

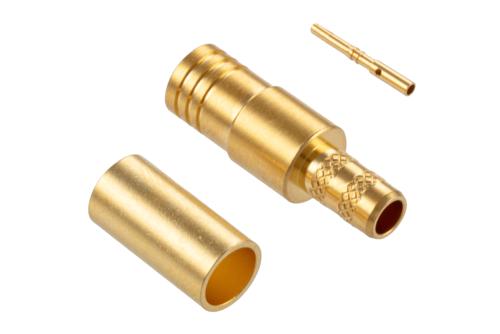

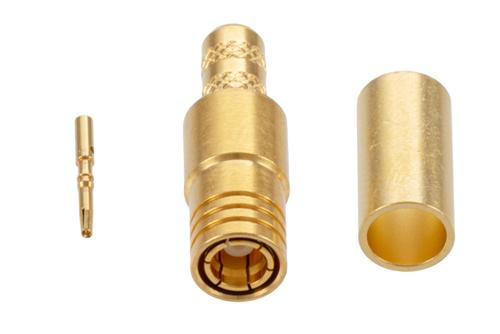

PE48018 SMB plug coaxial connector has an interface type of SMB plug, which is compatible with PE-C195, PE-P195, LMR®-195 and 0.195 inch cables, and has an impedance of 50 Ohms. Pasternack’s SMB plug connector uses crimp as an attachment method. Our plug SMB coaxial connector provides a maximum frequency of 3 GHz. This SMB plug RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack SMB plug coaxial connector has a PTFE dielectric type and a VSWR of 1.2:1. Pasternack’s SMB coaxial connector has a brass body with gold over nickel over copper plating. Our PE48018 SMB connector uses a gold over nickel over copper-plated phosphor bronze contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 5 mOhms and 2.5 mOhms respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. The PE48018 SMB connector operates at a temperature range of -65 to 165 deg C. This SMB connector has a gold over nickel over copper inner contact plating. The Pasternack SMB plug connector has a maximum operating voltage of 335 Vrms and a dielectric withstanding voltage of 1,000 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 10,000 MOhms. Our SMB plug connector has a length of 0.25 inches, a width of 0.25 inches, and a weight of 0.009 lbs.
This Pasternack plug SMB connector will ship the same business day as purchased. Our SMB plug coaxial connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
LMR® is a registered trademark of Times Microwave Systems.
