SMB Jack to SMB Plug Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

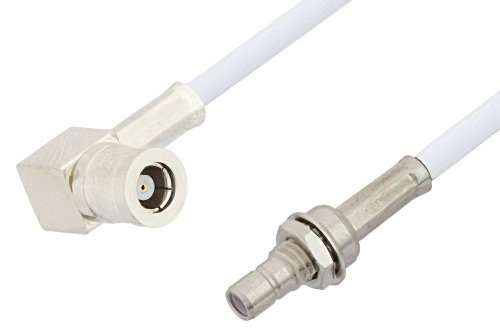

SMB Plug Right Angle to SMB Jack Bulkhead Cable 12 Inch Length Using RG188-DS Coax

Product ID: PE34477-12
SMB Plug Right Angle to SMB Jack Bulkhead Cable 12 Inch Length Using RG188-DS Coax

Image Views:  SMB Plug Right Angle to SMB Jack Bulkhead Cable 12 Inch Length Using RG188-DS Coax high resolution
Zoom


Click for:PE34477-12 Datasheet
Available Quantity: 2,470
Standard Lengths
24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Pricing Table
QUANTITYPRICE
1-24$62.75
25-49$59.61
50-99$56.48
100-249$53.97
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMB
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberRG188-DS
RF Cable TypeRG188-DS
RF Cable Impedance50


SMB Plug Right Angle to SMB Jack Bulkhead Cable 12 Inch Length Using RG188-DS Coax

PE34477-12 is a SMB plug right angle to SMB jack bulkhead cable using RG188-DS coax. This Pasternack SMB plug right angle to SMB jack bulkhead cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm SMB for connector 2. SMB right angle to SMB coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug SMB right angle to jack SMB bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34477-12 SMB plug right angle to SMB jack bulkhead cable assembly is constructed with RG188-DS coax.
