SMB Plug to SMB Jack Bulkhead Cable Using RG196 Coax

Product ID: PE3130

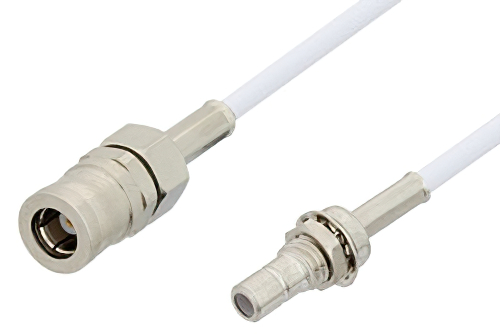

SMB Plug to SMB Jack Bulkhead Cable Using RG196 Coax

Image Views:  SMB Plug to SMB Jack Bulkhead Cable Using RG196 Coax high resolution
Zoom


Click for:PE3130 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMB
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberRG196A/U
RF Cable TypeRG196
RF Cable Impedance50


SMB Plug to SMB Jack Bulkhead Cable Using RG196 Coax

PE3130 is a SMB plug to SMB jack bulkhead cable using RG196 coax. This Pasternack SMB plug to SMB jack bulkhead cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm SMB for connector 2.

Our plug SMB to jack SMB bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3130 SMB plug to SMB jack bulkhead cable assembly is constructed with RG196 coax and the maximum VSWR is 1.4:1.
