SMB Plug Right Angle to SMB Jack Bulkhead Cable Using RG316 Coax, RoHS

Product ID: PE33675LF

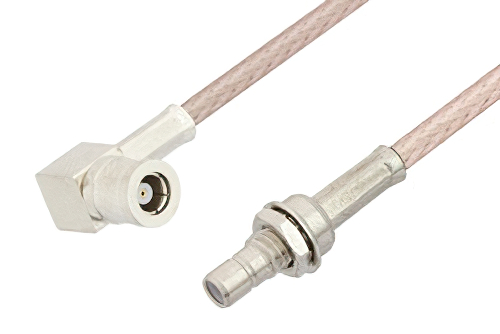

SMB Plug Right Angle to SMB Jack Bulkhead Cable Using RG316 Coax, RoHS

Image Views:  SMB Plug Right Angle to SMB Jack Bulkhead Cable Using RG316 Coax, RoHS high resolution
Zoom


Click for:PE33675LF Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMB
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50


SMB Plug Right Angle to SMB Jack Bulkhead Cable Using RG316 Coax, RoHS

PE33675LF is a SMB plug right angle to SMB jack bulkhead cable using RG316 coax. This Pasternack SMB plug right angle to SMB jack bulkhead cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm SMB for connector 2. SMB right angle to SMB coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug SMB right angle to jack SMB bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE33675LF SMB plug right angle to SMB jack bulkhead cable assembly is constructed with RG316 coax.
