SMB Plug Right Angle to SMB Plug Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

SMB Plug Right Angle to SMB Plug Right Angle Cable Using PE-C195 Coax

Product ID: PE39120

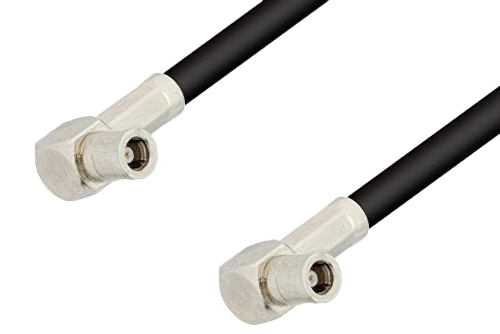

SMB Plug Right Angle to SMB Plug Right Angle Cable Using PE-C195 Coax

Image Views:  SMB Plug Right Angle to SMB Plug Right Angle Cable Using PE-C195 Coax high resolution
Zoom


Click for:PE39120 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMB
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-C195
RF Cable TypePE-C195
RF Cable Impedance50


SMB Plug Right Angle to SMB Plug Right Angle Cable Using PE-C195 Coax

PE39120 is a SMB plug right angle to SMB plug right angle cable using PE-C195 coax. This Pasternack SMB plug right angle to SMB plug right angle cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm SMB for connector 2. SMB right angle to SMB right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug SMB right angle to plug SMB right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE39120 SMB plug right angle to SMB plug right angle cable assembly is constructed with PE-C195 coax and the maximum VSWR is 1.4:1.
