SMB Plug Right Angle to SMB Plug Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

SMB Plug Right Angle to SMB Plug Right Angle Cable Using RG223 Coax

Product ID: PE33121
SMB Plug Right Angle to SMB Plug Right Angle Cable Using RG223 Coax

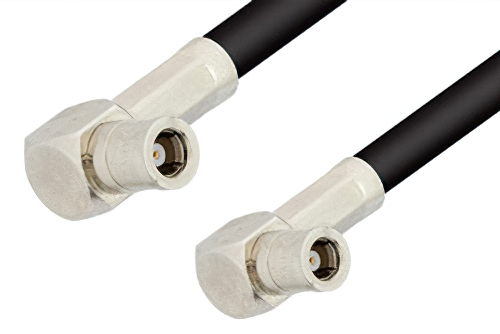

Image Views:  SMB Plug Right Angle to SMB Plug Right Angle Cable Using RG223 Coax high resolution
Zoom


Click for:PE33121 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMB
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG223/U
RF Cable TypeRG223
RF Cable Impedance50


SMB Plug Right Angle to SMB Plug Right Angle Cable Using RG223 Coax

PE33121 is a SMB plug right angle to SMB plug right angle cable using RG223 coax. This Pasternack SMB plug right angle to SMB plug right angle cable assembly uses a 50 Ohm SMB for connector 1 and a 50 Ohm SMB for connector 2. SMB right angle to SMB right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug SMB right angle to plug SMB right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE33121 SMB plug right angle to SMB plug right angle cable assembly is constructed with RG223 coax.
