SMB Plug Straight Connectors

Check out our new RF calculators & conversion tools...

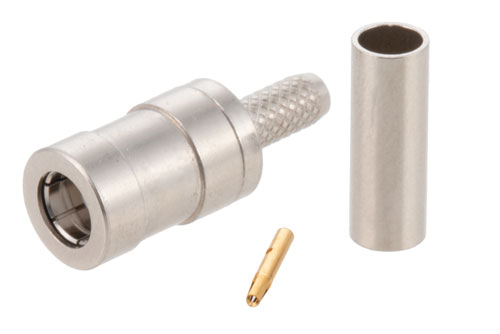

SMB Plug Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch

Product ID: PE4046
SMB Plug Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch


Image Views:  SMB Plug Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch high resolution
Zoomalternate image
View 2


Click for:PE4046 Datasheet
Click for:PE4046 RoHS Cert
Click for:PE4046 REACH Cert
Available Quantity: 10,445
Pricing Table
QUANTITYPRICE
1-24$12.10
25-49$11.50
50-99$10.89
100-249$10.41
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSMB
Connector GenderPlug
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency3 GHz


SMB Plug Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch

PE4046 SMB plug coaxial connector has an interface type of RG174, RG316, RG188, LMR-100, PE-B100, PE-C100, .100 inch and a 50 Ohm impedance. Pasternack SMB plug connector uses shield/contact crimp/solder as an attachment method. Our plug SMB coaxial connector provides a minimum frequency of DC and a maximum frequency of 3 GHz.

The Pasternack SMB plug coaxial connector has a ptfe dielectric type and a VSWR of 1.37. The Pasternack SMB coaxial connector has a brass body with nickel plating. Our PE4046 SMB connector uses beryllium copper contact. This SMB plug coaxial RF connector is RoHS and REACH compliant.

This Pasternack plug SMB connector will ship the same day as purchased. Our SMB plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMB connector cable assemblies that will ship the same day as well.

*LMR™ is a Trademark of Times Microwave
