SMB Plug Straight Connectors

Check out our new RF calculators & conversion tools...

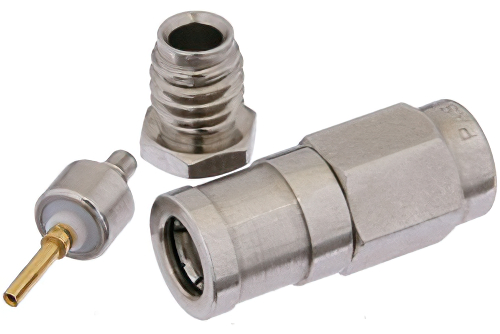

SMB Plug Connector Clamp/Solder Attachment for RG178, RG196

Product ID: PE4250
SMB Plug Connector Clamp/Solder Attachment for RG178, RG196


Image Views:  SMB Plug Connector Clamp/Solder Attachment for RG178, RG196 high resolution
Zoomalternate image

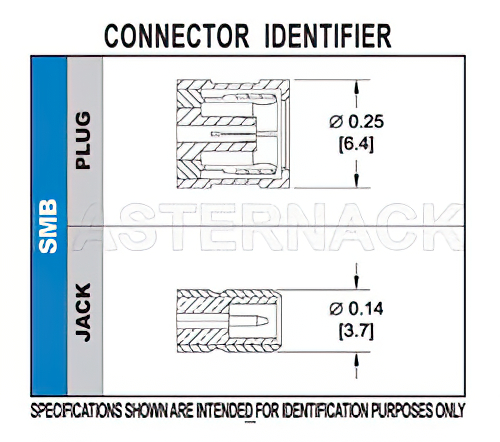

View 2


Click for:PE4250 Datasheet
Click for:PE4250 RoHS Cert
Click for:PE4250 REACH Cert
Available Quantity: 815
Pricing Table
QUANTITYPRICE
1-24$21.46
25-49$20.39
50-99$19.31
100-249$18.46
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSMB
Connector GenderPlug
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency3 GHz


SMB Plug Connector Clamp/Solder Attachment For RG178, RG196

PE4250 SMB plug coaxial connector has an interface type of RG178, RG196 and a 50 Ohm impedance. Pasternack SMB plug connector uses shield/contact clamp/solder as an attachment method. Our plug SMB coaxial connector provides a minimum frequency of DC and a maximum frequency of 3 GHz.

The Pasternack SMB plug coaxial connector has a teflon dielectric type and a VSWR of 1.42. The Pasternack SMB coaxial connector has a brass body with nickel plating. Our PE4250 SMB connector uses beryllium copper contact. This SMB plug coaxial RF connector is RoHS and REACH compliant.

This Pasternack plug SMB connector will ship the same day as purchased. Our SMB plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMB connector cable assemblies that will ship the same day as well.
