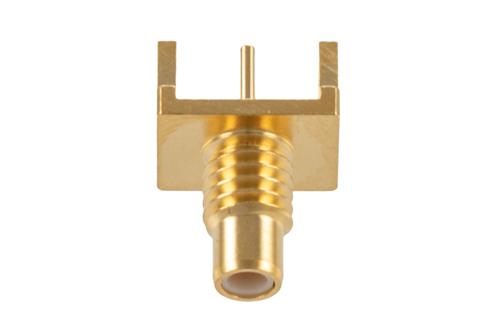

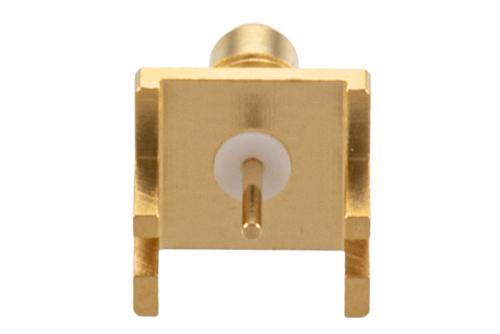

Pasternack’s PE517800 SMC Jack Connector Solder Attachment for 0.062 inch End Launch, is part of our full line of RF components available for same-day shipping. Pasternack’s SMC jack connector uses solder as an attachment method. Our jack SMC PCB connector provides a maximum frequency of 10 GHz. Our high-quality radio frequency coaxial connector is used for general-purpose test and printed circuit board applications.
The Pasternack SMC jack PCB connector has a PTFE dielectric type and a VSWR of 1.3:1. Pasternack’s SMC PCB connector has a brass body with gold over nickel over copper plating. Our PE517800 SMC connector uses a gold over nickel over copper-plated brass contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 5 mOhms and 2.5 mOhms respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. The PE517800 SMC connector operates at a temperature range of -65 to 165 deg C. This jack SMC PCB RF connector has a maximum insertion loss of 0.316 dB. This SMC connector has a gold over nickel over copper inner contact plating. The Pasternack SMC jack connector has a maximum operating voltage of 250 Vrms and a dielectric withstanding voltage of 750 Vrms. This PCB RF connector comes with a minimum insulation resistance of 10,000 MOhms. Our SMC jack connector has a length of 0.563 inches, a width of 0.374 inches, and a weight of 0.5 lbs.
This Pasternack jack SMC connector will ship the same business day as purchased. Our SMC jack connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
