SMC 75 Ohm to BNC Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

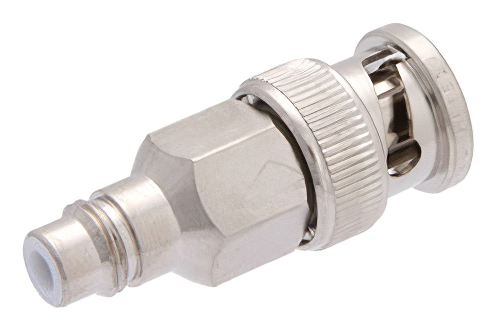

75 Ohm SMC Jack to 50 Ohm BNC Male Adapter

Product ID: PE9233
75 Ohm SMC Jack to 50 Ohm BNC Male Adapter

Image Views:  75 Ohm SMC Jack to 50 Ohm BNC Male Adapter high resolution
Zoom


Click for:PE9233 Datasheet
Click for:PE9233 RoHS Cert
Click for:PE9233 REACH Cert
DISCONTINUED PRODUCT
Search for alternative
Adapters.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMC
Connector Gender 1Jack
Connector Polarity 1Standard
Connector Impedance 175 Ohm
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


75 Ohm SMC Jack to 50 Ohm BNC Male Adapter

SMC adapter PE9233 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMC to BNC adapter is a between series coaxial adapter design. This 75 Ohm to 50 Ohm SMC adapter is precision manufactured to RF components industry specifications.

SMC jack to BNC male adapter is one of the many RF components that ship same day as they are ordered. PE9233 jack SMC to male BNC adapter has a straight body. This Pasternack straight SMC coax adapter is a in-line RF adapter.

Our jack SMC to male BNC adapter PE9233 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMC to BNC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
