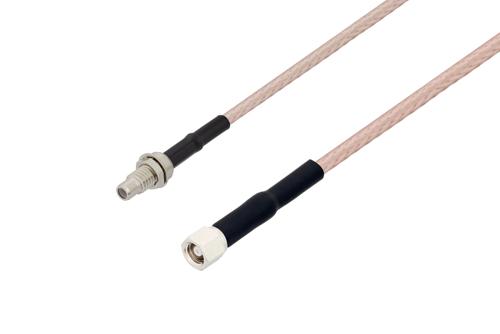

Radio frequency assembly SMC jack bulkhead to SMC plug cable 72 inch length using RG316 coax with heatshrink from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SMC jack bulkhead to SMC plug cable 72 inch length using RG316 coax with heatshrink, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMC to SMC cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a SMC bulkhead cable connection on one end and a SMC cable connection on the other. Our SMC to SMC cable assembly has a jack gender on end 1 and a plug on end 2. PE33690/HS-72 can also be known as a SMC female to SMC male cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
Our PE33690/HS-72 RF cable has a FEP jacket of 0.102-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -55 to 165 degrees C. The flexible RF cable has an in-series connection. Our bulkhead SMC jack to SMC plug cable has a maximum VSWR of 1.4:1.
SMC female to SMC male cable assembly PE33690/HS-72 is built with RG316 which is a flexible coax type. The Pasternack flexible SMC cable assembly is manufactured with SMC to SMC cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a crimp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE33690/HS-72 can also be used in the other direction and will be a SMC plug to SMC jack bulkhead cable assembly if the opposite connectivity is required.
SMC female bulkhead to SMC male cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMC to SMC cable assembly for quick shipment worldwide. Variations of SMC cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMC to SMC RF cable assembly as per your requirements.
