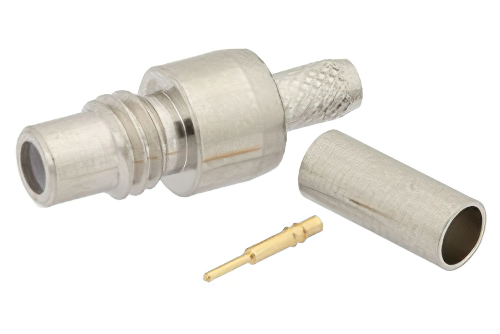

SMC Jack Connector Crimp/Solder Attachment for RG188-DS, RG316-DS

Name: SMC Jack Connector Crimp/Solder Attachment for RG188-DS, RG316-DS
Brand: Pasternack
SKU: PE45156
Availability: InStock

Product ID: PE45156

Pricing

Quantity	Price
1-24	$16.79
25-49	$15.95
50-99	$15.11
100-249	$14.44
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 140

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	SMC
Connector Gender	Jack
Impedance	50 Ohm
Body Style	Straight
Attachment Method	Crimp/Solder
Mount Method	None
Minimum Frequency	DC
Maximum Frequency	10 GHz
Interface Type 1	RG188-DS
Interface Type 2	RG316-DS

Description

SMC Jack Connector Crimp/Solder Attachment for RG188-DS, RG316-DS

PE45156 SMC jack coaxial connector has an interface type of RG188-DS, RG316-DS and a 50 Ohm impedance. Pasternack SMC jack connector uses shield/contact crimp/solder as an attachment method. Our jack SMC coaxial connector provides a minimum frequency of DC and a maximum frequency of 10 GHz.

The Pasternack SMC jack coaxial connector has a teflon dielectric type. The Pasternack SMC coaxial connector has a brass body with nickel plating. Our PE45156 SMC connector uses brass contact. This SMC jack coaxial RF connector is REACH compliant.

This Pasternack jack SMC connector will ship the same day as purchased. Our SMC jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMC connector cable assemblies that will ship the same day as well.
