SMC to SMB Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

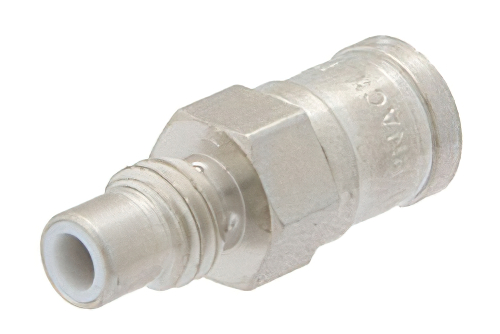

SMC Jack to SMB Plug Adapter

Product ID: PE9282
SMC Jack to SMB Plug Adapter

Image Views:  SMC Jack to SMB Plug Adapter high resolution
Zoom


Click for:PE9282 Datasheet
Click for:PE9282 RoHS Cert
Click for:PE9282 REACH Cert
Available Quantity: 24
Pricing Table
QUANTITYPRICE
1-24$52.50
25-49$49.88
50-99$47.25
100-249$45.15
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMC
Connector Gender 1Jack
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2SMB
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


SMC Jack to SMB Plug Adapter

SMC adapter PE9282 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMC to SMB adapter is a between series coaxial adapter design. This 50 Ohm SMC adapter is precision manufactured to RF components industry specifications.

SMC jack to SMB plug adapter is one of the many RF components that ship same day as they are ordered. PE9282 jack SMC to plug SMB adapter has a straight body. This Pasternack straight SMC coax adapter is a in-line RF adapter.

Our jack SMC to plug SMB adapter PE9282 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMC to SMB radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
