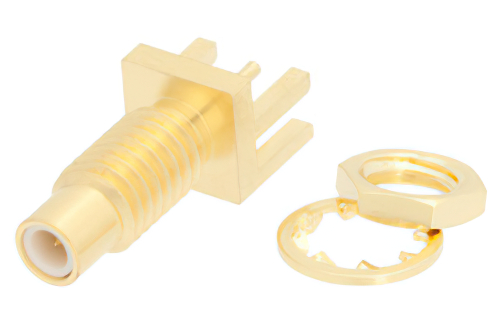

SMC Jack Bulkhead Connector Solder Attachment 0.062 inch End Launch PCB

Name: SMC Jack Bulkhead Connector Solder Attachment 0.062 inch End Launch PCB
Brand: Pasternack
SKU: PE44848
Availability: LimitedAvailability

Product ID: PE44848

Pricing

Quantity	Price
1-24	$43.79
25-49	$41.60
50-99	$39.41
100-249	$37.66
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 1

Same-Day Shipping!

Order in the next hours!

Product discontinued when current inventory is depleted.

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	SMC
Connector Gender	Jack
Impedance	50 Ohm
Body Style	Straight
Attachment Method	Solder
Mount Method	Bulkhead
Minimum Frequency	DC
Maximum Frequency	10 GHz
Interface Type 1	.062 inch End Launch

Description

SMC Jack Bulkhead Connector Solder Attachment 0.062 inch End Launch PCB

PE44848 SMC jack bulkhead pcb connector has an interface type of .062 inch end launch and a 50 Ohm impedance. Pasternack SMC jack bulkhead connector uses shield/contact solder as an attachment method. Our jack SMC pcb connector provides a minimum frequency of DC and a maximum frequency of 10 GHz.

The Pasternack SMC jack bulkhead pcb connector has a PTFE dielectric type. The Pasternack SMC pcb connector has a brass body with gold plating. Our PE44848 SMC connector uses brass contact and a gold plating material. This SMC jack bulkhead pcb RF connector is RoHS and REACH compliant.

This Pasternack jack SMC bulkhead connector will ship the same day as purchased. Our bulkhead SMC jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMC connector cable assemblies that will ship the same day as well.
