SMC Jack Right Angle Connectors

Check out our new RF calculators & conversion tools...

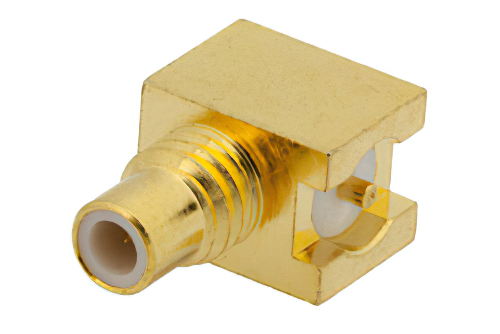

SMC Jack Right Angle Connector Solder Attachment Surface Mount PCB

Product ID: PE44122
SMC Jack Right Angle Connector Solder Attachment Surface Mount PCB


Image Views:  SMC Jack Right Angle Connector Solder Attachment Surface Mount PCB high resolution
Zoomalternate image
View 2


Click for:PE44122 Datasheet
Click for:PE44122 RoHS Cert
Click for:PE44122 REACH Cert
Available Quantity: 3,023
Pricing Table
QUANTITYPRICE
1-24$7.61
25-49$7.08
50-99$6.54
100-249$6.09
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSMC
Connector GenderJack
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodSolder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency10 GHz


SMC Jack Right Angle Connector Solder Attachment Surface Mount PCB

PE44122 SMC jack right angle pcb connector has an interface type of surface mount and a 50 Ohm impedance. Pasternack SMC jack connector uses shield/contact solder as an attachment method. Our jack SMC right angle pcb connector provides a minimum frequency of DC and a maximum frequency of 10 GHz.

The Pasternack right angle SMC jack pcb connector has a teflon dielectric type. The Pasternack SMC pcb connector has a brass body with gold plating. Our PE44122 SMCright angle connector uses brass contact. This SMC jack right angle pcb RF connector is RoHS and REACH compliant.

This Pasternack right angle jack SMC connector will ship the same day as purchased. Our SMC right angle jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMC connector cable assemblies that will ship the same day as well.
