SMC to BNC Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

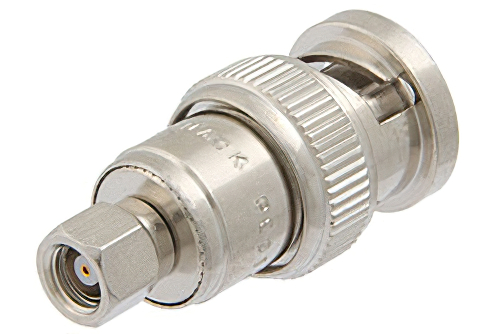

SMC Plug to BNC Male Adapter

Product ID: PE9139
SMC Plug to BNC Male Adapter

Image Views:  SMC Plug to BNC Male Adapter high resolution
Zoom


Click for:PE9139 Datasheet
Click for:PE9139 RoHS Cert
Click for:PE9139 REACH Cert
Available Quantity: 2,709
Pricing Table
QUANTITYPRICE
1-24$50.48
25-49$46.95
50-99$43.41
100-249$40.38
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMC
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


SMC Plug to BNC Male Adapter

SMC adapter PE9139 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMC to BNC adapter is a between series coaxial adapter design. This 50 Ohm SMC adapter is precision manufactured to RF components industry specifications.

SMC plug to BNC male adapter is one of the many RF components that ship same day as they are ordered. PE9139 plug SMC to male BNC adapter has a straight body. This Pasternack straight SMC coax adapter is a in-line RF adapter.

Our plug SMC to male BNC adapter PE9139 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMC to BNC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
