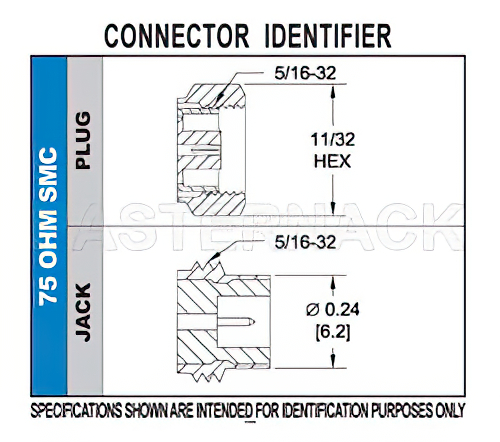

PE4658 SMC plug coaxial connector has an interface type of SMC plug which is compatible with RG59B/U, RG62 and RG71 cables and has an impedance of 75 Ohms. Pasternack's SMC plug connector uses crimp/solder as an attachment method. Our plug SMC coaxial connector provides a maximum frequency of 2 GHz. This SMC plug RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack SMC plug coaxial connector has a PTFE dielectric type. Pasternack's SMC coaxial connector has a brass body with nickel plating. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE4658 features a QQ-N-290 body plating specification. The PE4658 SMC connector operates at a temperature range of -65 to 165 deg C. This SMC connector has a gold inner contact plating. The Pasternack SMC plug connector has a maximum operating voltage of 335 Vrms and a dielectric withstanding voltage of 750 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 1,000 MOhms. Our SMC plug connector has a length of 0.87 inches, a width of 0.375 inches, and a weight of 0.012 lbs.
This Pasternack plug SMC connector will ship the same business day as purchased. Our SMC plug connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
