SMC Plug Right Angle to SMC Jack Bulkhead Cable Using RG196 Coax

Product ID: PE33692
SMC Plug Right Angle to SMC Jack Bulkhead Cable Using RG196 Coax

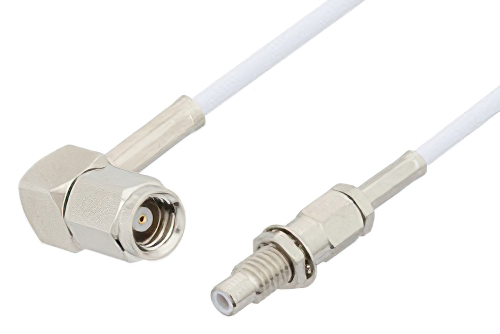

Image Views:  SMC Plug Right Angle to SMC Jack Bulkhead Cable Using RG196 Coax high resolution
Zoom


Click for:PE33692 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMC
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMC
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberRG196A/U
RF Cable TypeRG196
RF Cable Impedance50


SMC Plug Right Angle to SMC Jack Bulkhead Cable Using RG196 Coax

PE33692 is a SMC plug right angle to SMC jack bulkhead cable using RG196 coax. This Pasternack SMC plug right angle to SMC jack bulkhead cable assembly uses a 50 Ohm SMC for connector 1 and a 50 Ohm SMC for connector 2. SMC right angle to SMC coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug SMC right angle to jack SMC bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE33692 SMC plug right angle to SMC jack bulkhead cable assembly is constructed with RG196 coax.
