SMC Plug 75 Ohm to SMC Plug 75 Ohm Cable Assemblies

Check out our new RF calculators & conversion tools...

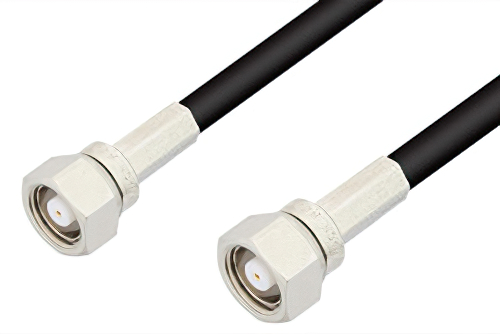

75 Ohm SMC Plug to 75 Ohm SMC Plug Cable Using 75 Ohm PE-B150 Coax

Product ID: PE3388
75 Ohm SMC Plug to 75 Ohm SMC Plug Cable Using 75 Ohm PE-B150 Coax

Image Views:  75 Ohm SMC Plug to 75 Ohm SMC Plug Cable Using 75 Ohm PE-B150 Coax high resolution
Zoom


Click for:PE3388 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMC
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 175
Connector Series 2SMC
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 275
RF Cable Part NumberPE-B150
RF Cable TypePE-B150
RF Cable Impedance75


75 Ohm SMC Plug to 75 Ohm SMC Plug Cable Using 75 Ohm PE-B150 Coax

PE3388 is a SMC plug to SMC plug cable using PE-B150 coax. This Pasternack SMC plug to SMC plug cable assembly uses a 75 Ohm SMC for connector 1 and a 75 Ohm SMC for connector 2.

Our plug SMC to plug SMC cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE3388 SMC plug to SMC plug cable assembly is constructed with PE-B150 coax.
