SMC Plug to SMC Plug Right Angle Cable Using RG188 Coax

Product ID: PE3600

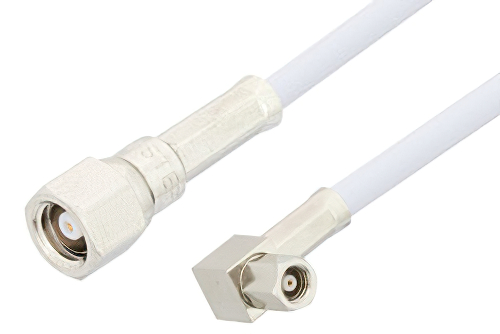

SMC Plug to SMC Plug Right Angle Cable Using RG188 Coax

Image Views:  SMC Plug to SMC Plug Right Angle Cable Using RG188 Coax high resolution
Zoom


Click for:PE3600 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMC
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SMC
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG188A/U
RF Cable TypeRG188
RF Cable Impedance50


SMC Plug to SMC Plug Right Angle Cable Using RG188 Coax

PE3600 is a SMC plug to SMC plug right angle cable using RG188 coax. This Pasternack SMC plug to SMC plug right angle cable assembly uses a 50 Ohm SMC for connector 1 and a 50 Ohm SMC for connector 2. SMC to SMC right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug SMC to plug SMC right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3600 SMC plug to SMC plug right angle cable assembly is constructed with RG188 coax and the maximum VSWR is 1.4:1.
