SMC Plug Right Angle Connectors

Check out our new RF calculators & conversion tools...

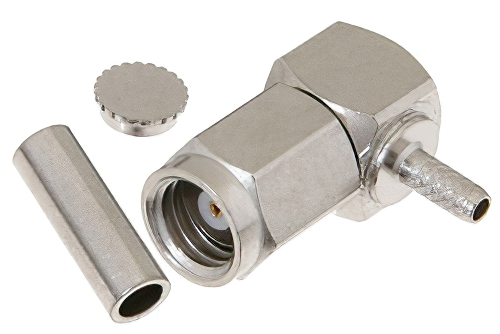

SMC Plug Right Angle Connector Crimp/Solder Attachment for RG178, RG196

Product ID: PE4160
SMC Plug Right Angle Connector Crimp/Solder Attachment for RG178, RG196


Image Views:  SMC Plug Right Angle Connector Crimp/Solder Attachment for RG178, RG196 high resolution
Zoomalternate image

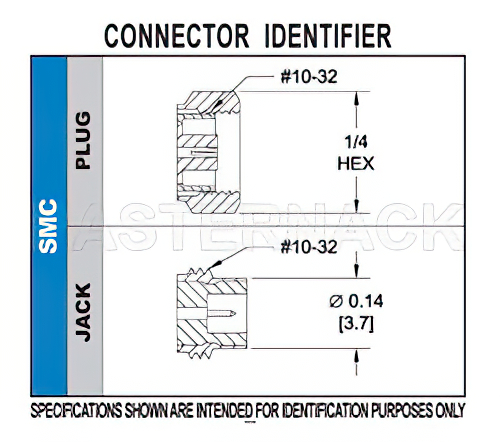

View 2


Click for:PE4160 Datasheet
Click for:PE4160 RoHS Cert
Click for:PE4160 REACH Cert
Available Quantity: 759
Pricing Table
QUANTITYPRICE
1-24$17.62
25-49$16.74
50-99$15.86
100-249$15.15
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSMC
Connector GenderPlug
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency3 GHz


SMC Plug Right Angle Connector Crimp/Solder Attachment for RG178, RG196

PE4160 SMC plug right angle coaxial connector has an interface type of RG178, RG196 and a 50 Ohm impedance. Pasternack SMC plug connector uses shield/contact crimp/solder as an attachment method. Our plug SMC right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 3 GHz.

The Pasternack right angle SMC plug coaxial connector has a ptfe dielectric type and a VSWR of 1.5. The Pasternack SMC coaxial connector has a brass body with nickel plating. Our PE4160 SMCright angle connector uses beryllium copper contact. This SMC plug right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle plug SMC connector will ship the same day as purchased. Our SMC right angle plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMC connector cable assemblies that will ship the same day as well.
