SMP to MMBX Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

Push-On SMP Female to MMBX Plug Snap-On Adapter, With Male Center Contact

Product ID: PE91364
Push-On SMP Female to MMBX Plug Snap-On Adapter, With Male Center Contact

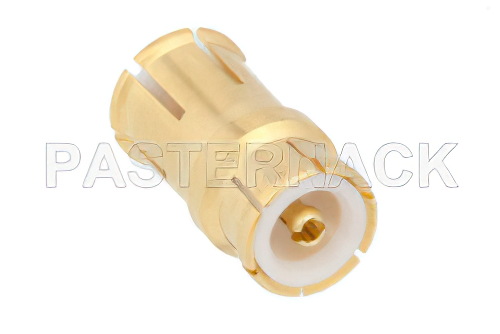

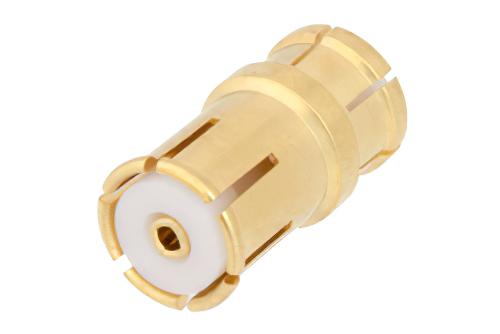

Image Views:  Push-On SMP Female to MMBX Plug Snap-On Adapter, With Male Center Contact high resolution
Zoomalternate image
View 2


Click for:PE91364 Datasheet
Click for:PE91364 RoHS Cert
Click for:PE91364 REACH Cert
Available Quantity: 97
Pricing Table
QUANTITYPRICE
1-24$11.78
25-49$11.19
50-99$10.60
100-249$10.13
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMP
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2MMBX
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max6 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Beryllium Copper
Connector Body Plating 1Gold
Connector Mount Method 2None
Connector Body Material 2Beryllium Copper
Connector Body Plating 2Gold


Push-On SMP Female to MMBX Plug Snap-On Adapter, With Male Center Contact

SMP adapter PE91364 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMP to MMBX adapter is a between series coaxial adapter design. This 50 Ohm SMP adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 6 GHz.

SMP female to MMBX plug adapter is one of the many RF components that ship same day as they are ordered. PE91364 female SMP to plug MMBX adapter has a straight body. This Pasternack straight SMP coax adapter is a in-line RF adapter.

Our female SMP to plug MMBX adapter PE91364 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This with male center contact SMP to MMBX radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
