Push-On SMP Female Right Angle to N Female Bulkhead Cable Using LMR-100 Coax

Product ID: PE3W05673

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMP
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Right Angle
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	N
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50 Ohm
RF Cable Part Number	LMR-100A-PVC
RF Cable Type	LMR-100A
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE45128	LMR-100A-PVC	PE4442	KitBOM Datasheet

Push-On SMP Female Right Angle to N Female Bulkhead Cable Using LMR-100 Coax

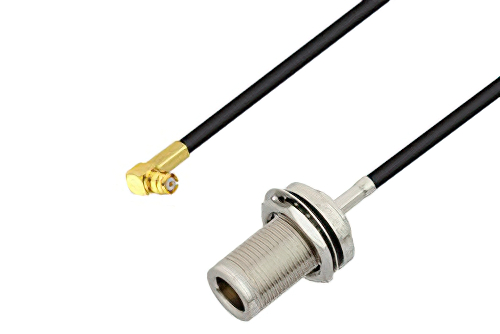

PE3W05673 is a SMP female right angle to N female bulkhead cable using LMR-100A coax. This Pasternack SMP female right angle to N female bulkhead cable assembly uses a 50 Ohm SMP for connector 1 and a 50 Ohm N for connector 2. SMP right angle to N coaxial cable assembly uses 90 degree right angle coax cable connector.

Our female SMP right angle to female N bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W05673 SMP female right angle to N female bulkhead cable assembly is constructed with LMR-100A coax.

* LMR™ is a trademark of Times Microwave Systems.
