SMP Female Right Angle Connectors

Check out our new RF calculators & conversion tools...

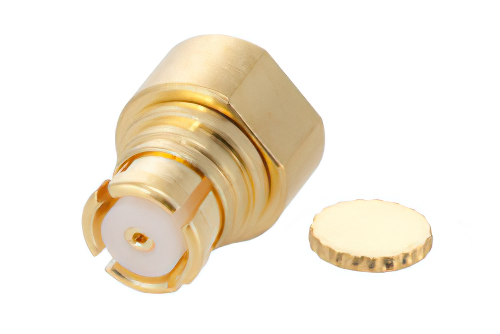

SMP Female Right Angle Connector Solder Attachment for PE-047SR, PE-SR047AL, PE-SR047FL, Up To 8 GHz

Product ID: PE45249
SMP Female Right Angle Connector Solder Attachment for PE-047SR, PE-SR047AL, PE-SR047FL, Up To 8 GHz


Image Views:  SMP Female Right Angle Connector Solder Attachment for PE-047SR, PE-SR047AL, PE-SR047FL, Up To 8 GHz high resolution
Zoomalternate image

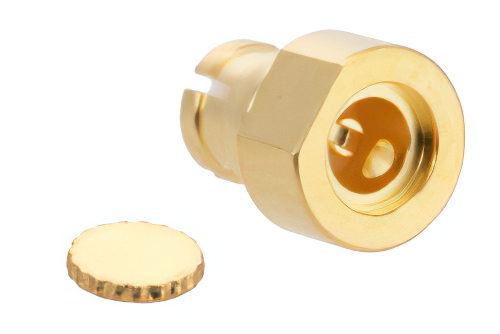

View 2


Click for:PE45249 Datasheet
Click for:PE45249 RoHS Cert
Click for:PE45249 REACH Cert
Available Quantity: 89
Pricing Table
QUANTITYPRICE
1-24$9.22
25-49$8.57
50-99$7.93
100-249$7.38
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSMP
Connector GenderFemale
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodSolder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency8 GHz


SMP Female Right Angle Connector Solder Attachment for PE-047SR, PE-SR047AL, PE-SR047FL, Up To 8 GHz

PE45249 SMP female right angle coaxial connector has an interface type of PE-047SR, PE-SR047AL, PE-SR047FL and a 50 Ohm impedance. Pasternack SMP female connector uses shield/contact solder as an attachment method. Our female SMP right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 8 GHz.

The Pasternack right angle SMP female coaxial connector has a ptfe dielectric type and a VSWR of 1.15. The Pasternack SMP coaxial connector has a beryllium copper body with gold plating. Our PE45249 SMPright angle connector uses beryllium copper contact and a gold plating material. This SMP female right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle female SMP connector will ship the same day as purchased. Our SMP right angle female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMP connector cable assemblies that will ship the same day as well.
