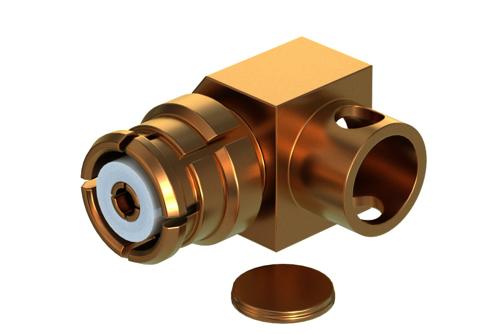

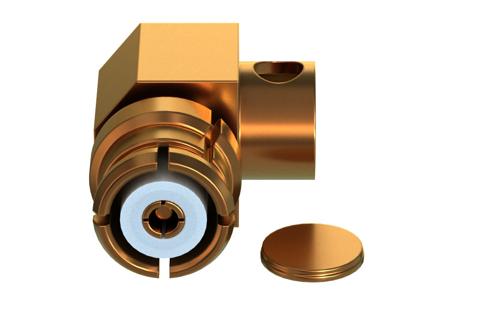

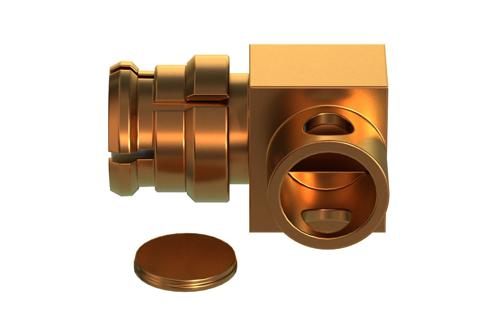

PE48093 SMP female right angle coaxial engineering grade connector has an interface type of SMP female, which is compatible with PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN and RG405 cables, and has an impedance of 50 Ohms. Pasternack’s SMP female connector uses solder as an attachment method. Our female SMP right angle coaxial connector provides a maximum frequency of 26.5 GHz. This SMP female engineering grade RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack right angle SMP female coaxial connector has a PTFE dielectric type and a VSWR of 1.35:1. Pasternack’s SMP coaxial connector has a beryllium copper body with gold over nickel-phosphorus alloy over copper plating. Our PE48093 SMP right angle connector uses beryllium copper inner and outer contacts. The Pasternack engineering grade RF connector has a maximum inner and outer conductor resistance of 6 mOhms and 2 mOhms, respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The PE48093 SMP engineering grade connector operates at a temperature range of -65 to 165 deg C. Our push-on female SMP coaxial RF connector has a maximum insertion loss of 0.309 dB. This right angle connector has gold over nickel-phosphorus alloy over copper inner and outer contact plating. The Pasternack engineering grade SMP female connector has a maximum operating voltage of 335 Vrms and a dielectric withstanding voltage of 500 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our right angle SMP female connector has a length of 0.266 inches, a width of 0.155 inches, and a weight of 0.05 lbs.
This Pasternack engineering grade right angle female SMP connector will ship the same business day as purchased. Our SMP right angle female coaxial connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
