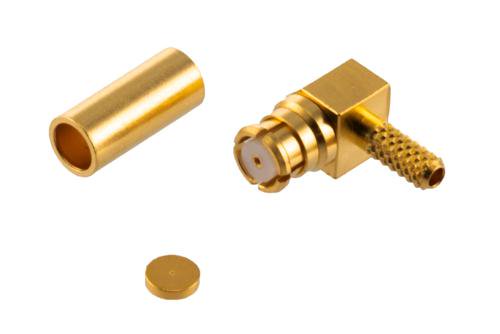

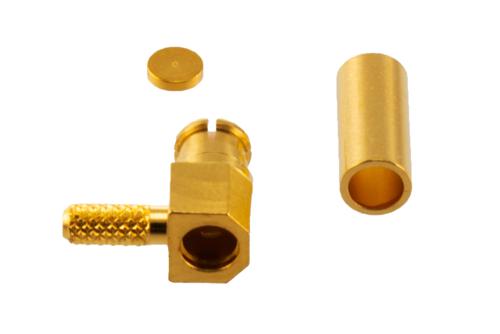

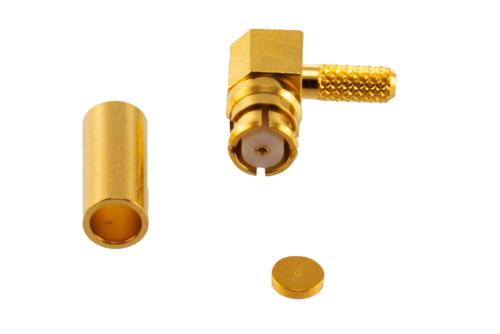

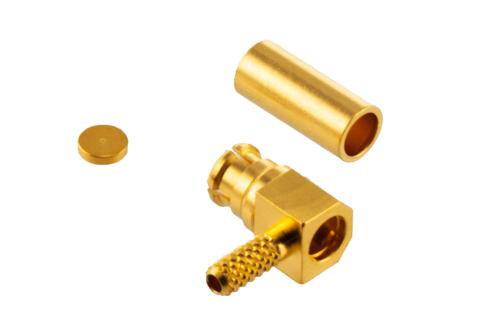

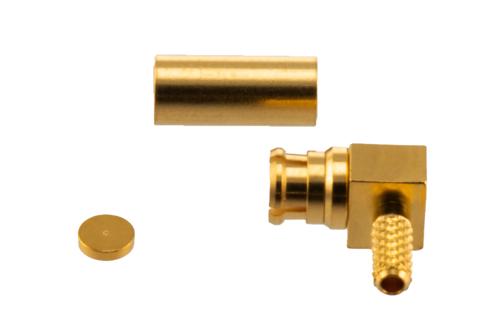

PE51768 SMP femaleright angle coaxial connector has an interface type of SMP female which is compatible with RG178 and RG196 cables and has an impedance of 50 Ohms. Pasternack’s SMP female connector uses crimp as an attachment method. Our female SMP right anglecoaxial connector provides a maximum frequency of 3 GHz. This SMP female RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack right angleSMP female coaxial connector has a teflon dielectric type and a VSWR of 1.25:1. Pasternack’s SMP coaxial connector has a beryllium copper body with gold over nickel over copper plating. Our PE51768 SMP right angle connector uses a gold over nickel over copper-plated beryllium copper contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 6 mOhms and 2 mOhms respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The PE51768 SMP connector operates at a temperature range of -65 to 165 deg C. This female SMP coaxial RF connector has a maximum insertion loss of 0.103 dB. This right angle SMP connector has a gold over nickel over copper inner contact plating. The Pasternack SMP female connector has a maximum operating voltage of 335 Vrms and a dielectric withstanding voltage of 500 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our right angle SMP female connector has a length of 0.315 inches, a width of 0.156 inches, and a weight of 0.0005 lbs.
This Pasternack right anglefemale SMP connector will ship the same business day as purchased. Our SMP right anglefemale connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
