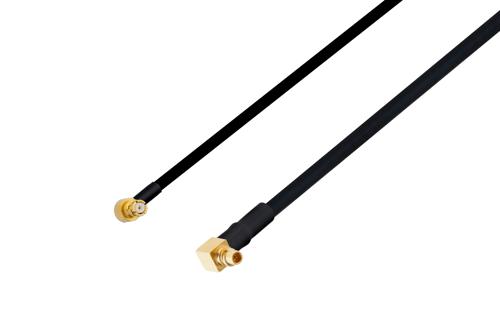

Radio frequency assembly SMP female right angle to MMCX plug right angle cable using PE-SR405FLJ coax with 180 deg. clock from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SMP female right angle to MMCX plug right angle cable using PE-SR405FLJ coax with 180 deg. clock, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMP to MMCX cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a right angle SMP cable connection on one end and a right angle MMCX cable connection on the other. Our right angle SMP to right angle MMCX cable assembly has a female gender on end 1 and a plug on end 2. PE3C3221/PH180 can also be known as a right angle SMP jack to right angle MMCX male cable assembly and will be shipped the same day as it is purchased. This formable RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
This cable assembly employs durable and flexible materials, and with a 0.787-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3C3221/PH180 RF cable has a FEP jacket of 0.105-inch diameter. The formable RF cable has a between series connection. This cable assembly has a typical propagation velocity of 69.5% and a minimum RF shielding of 100 dB. Our right angle SMP female to right angle MMCX plug cable has a maximum VSWR of 1.4:1.
SMP jack to MMCX male cable assembly PE3C3221/PH180 is built with PE-SR405FLJ which is a formable coax type. The Pasternack formable SMP cable assembly is manufactured with right angle SMP to right angle MMCX cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a solder/solder attachment method. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3C3221/PH180 can also be used in the other direction and will be a right angle MMCX plug to right angle SMP female cable assembly if the opposite connectivity is required.
SMP right angle jack to MMCX right angle male cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMP to MMCX cable assembly for quick shipment worldwide. Variations of SMP and MMCX cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMP to MMCX RF cable assembly as per your requirements.
