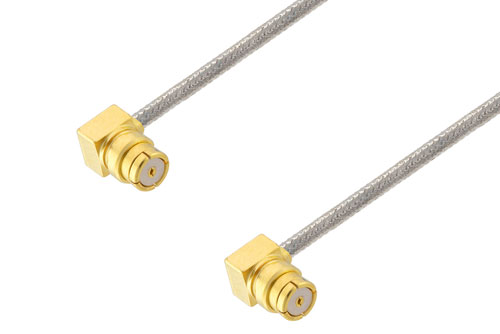

SMP Female Right Angle to SMP Female Right Angle Cable 36 Inch Length Using PE-SR047FL Coax with 270 Deg. Clock

Product ID: PE3W01125/SP-36

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Pricing

Quantity	Price
1-24	$189.19
25-49	$179.73
50-99	$170.27
100-249	$162.70
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 1

Same-Day Shipping!

Order in the next hours!

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications.
Connector 1 Series	SMP
Connector 1 Gender	Female
Connector 1 Polarity	Standard
Connector Angle 1	Right Angle
Connector 1 Impedance	50 Ohm
Connector 2 Series	SMP
Connector 2 Gender	Female
Connector 2 Polarity	Standard
Connector Angle 2	Right Angle
Connector 2 Impedance	50 Ohm
Connector 1 Body Material	Beryllium Copper
Connector 1 Body Plating	Gold
RF Cable Part Number	PE-SR047FL
RF Cable Type	PE-SR047FL
RF Cable Impedance	50 Ohm
Length, Max	36 inches

Description

SMP Female Right Angle to SMP Female Right Angle Cable 36 Inch Length Using PE-SR047FL Coax with 270 Deg. Clock

Radio frequency assembly SMP female right angle to SMP female right angle cable 36 inch length using PE-SR047FL coax with 270 deg. clock from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, general use, etc. The SMP female right angle to SMP female right angle cable 36 inch length using PE-SR047FL coax with 270 deg. clock, SMP cable like our other Pasternack coaxial cable assemblies, will ship the same day and any custom SMP to SMP cable assembly orders will ship same day as well.

Pasternack RF coax cable assembly is built with right angle SMP cable connection on one end and right angle SMP cable connection on the other. Our right angle SMP to right angle SMP cable assemblies have a female gender on end 1 and female on end 2. This SMP to SMP cable is a female to female coax assembly, PE3W01125/SP-36, can also be known as a right angle SMP jack to right angle SMP jack cable assembly and will be shipped same-day as it is purchased.

SMP jack to SMP jack cable assembly PE3W01125/SP-36 is built with PE-SR047FL which is a formable coax type. The Pasternack formable SMP cable assembly is manufactured with right angle SMP to right angle SMP cable connectors, has a 50 Ohm impedance and is single shielded. RF specs on this 18 GHz maximum frequency SMP right angle female to SMP right angle female cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions.

SMP right angle jack to SMP right angle jack cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality SMP to SMP cable assembly for quick shipment worldwide. Variations of SMP cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this SMP female right angle to SMP female right angle cable 36 inch length using PE-SR047FL coax with 270 deg. clock.
