SMP Female Right Angle Connectors

Check out our new RF calculators & conversion tools...

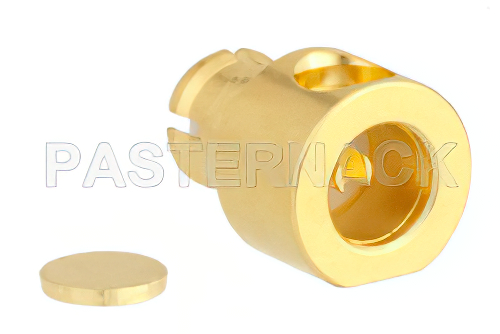

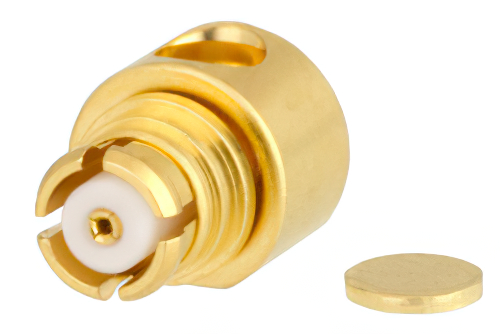

SMP Female Right Angle Connector Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405

Product ID: PE44275
SMP Female Right Angle Connector Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405


Image Views:  SMP Female Right Angle Connector Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405 high resolution
Zoomalternate image
View 2


Click for:PE44275 Datasheet
Click for:PE44275 RoHS Cert
Click for:PE44275 REACH Cert
Available Quantity: 785
Pricing Table
QUANTITYPRICE
1-24$30.34
25-49$28.22
50-99$26.09
100-249$24.27
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSMP
Connector GenderFemale
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodSolder/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency26.5 GHz


SMP Female Right Angle Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405

PE44275 SMP female right angle coaxial connector has an interface type of PE-SR405AL, PE-SR405FL, RG405 and a 50 Ohm impedance. Pasternack SMP female connector uses shield/contact solder/solder as an attachment method. Our female SMP right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 26.5 GHz.

The Pasternack right angle SMP female coaxial connector has a ptfe dielectric type. The Pasternack SMP coaxial connector has a beryllium copper body with gold plating. Our PE44275 SMPright angle connector uses beryllium copper contact and a gold plating material. This SMP female right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle female SMP connector will ship the same day as purchased. Our SMP right angle female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMP connector cable assemblies that will ship the same day as well.
