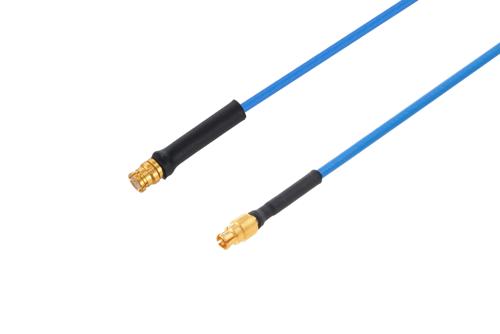

Radio frequency assembly SMP female to mini SMP female cable using PE-P047 coax with heatshrink from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SMP female to mini SMP female cable using PE-P047 coax with heatshrink, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SMP to mini SMP cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a SMP cable connection on one end and a mini SMP cable connection on the other. Our SMP to mini SMP cable assembly has a female gender on end 1 and a female on end 2. PE3C3803/HS can also be known as a SMP jack to mini SMP jack cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper as the cable's inner conducting material and FEP dielectric type.
This cable assembly employs durable and flexible materials, and with a 0.4-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3C3803/HS RF cable has a FEP jacket of 0.056-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -55 to 125 degrees C. The flexible RF cable has a between series connection. This cable assembly has a typical propagation velocity of 70% and a minimum RF shielding of 90 dB. Our SMP female to Mini SMP female cable has a maximum VSWR of 1.39:1.
SMP jack to mini SMP jack cable assembly PE3C3803/HS is built with PE-P047 which is a flexible coax type. The Pasternack flexible SMP cable assembly is manufactured with SMP to mini SMP cable connectors, has a 50 Ohm impedance, and is double shielded. One connector features the solder/solder attachment method and a beryllium copper body with gold plating, while the other has the solder attachment method and a beryllium copper body with gold plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3C3803/HS can also be used in the other direction and will be a mini SMP female to SMP female cable assembly if the opposite connectivity is required.
SMP jack to mini SMP jack cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SMP to mini SMP cable assembly for quick shipment worldwide. Variations of SMP and mini SMP cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMP to Mini SMP RF cable assembly as per your requirements.
