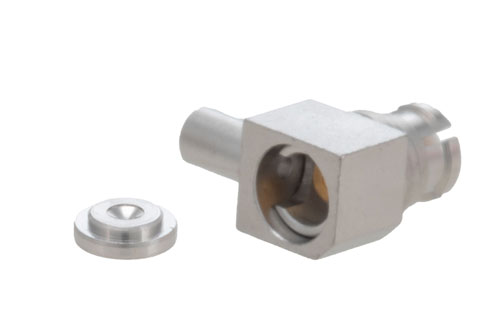

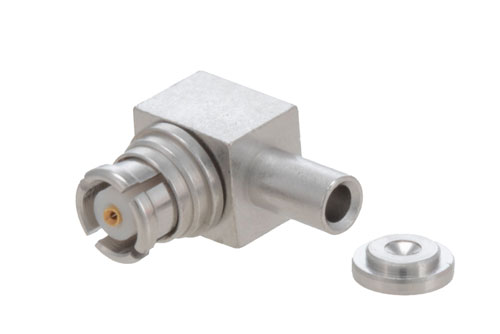

PE45886 SMP female right-angle coaxial non-magnetic connector has an interface type of SMP female, which is compatible with 0.047 cables, and has an impedance of 50 Ohms. This connector is part of our non-magnetic RF interconnects that are designed for carrying RF signals within a magnetic field. As such, they have a low level of magnetic susceptibility and no field distortion. Pasternack’s SMP female connector uses solder/solder as an attachment method. Our female SMP right-angle coaxial connector provides a maximum frequency of 12.4 GHz. This SMP female non-magnetic RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack right-angle SMP female coaxial connector has a maximum VSWR of 1.25:1. This non-magnetic connector is suitable for use in MRI and other medical imaging equipment, patient monitoring devices, medical technology, and other non-magnetic RF applications. Pasternack’s SMP coaxial connector has a bronze body with copper-tin-zinc alloy over silver plating. Our PE45886 SMP right-angle connector uses a gold over copper-plated beryllium copper contact. This SMP connector is suitable for applications including Medical, Military and Aerospace and Quantum Computing. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from bronze material has a contact life of 500 cycles or more. The PE45886 SMP non-magnetic connector operates at a temperature range of -55 to 105 deg C. Our threaded female SMP coaxial RF connector has a maximum insertion loss of 0.12 dB. This right-angle SMP connector has a gold over copper inner contact plating. The Pasternack non-magneticSMP female connector has a maximum operating voltage of 250 Vrms and a dielectric withstanding voltage of 500 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our right-angle SMP female connector has a length of 0.29921 inches, a width of 0.26378 inches, and a weight of 0.00119 lbs.
This Pasternack non-magnetic right-angle female SMP connector will ship the same business day as purchased. Our SMP right-angle female coaxial connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
